2106003-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2106003-2
Datasheet:
Description:

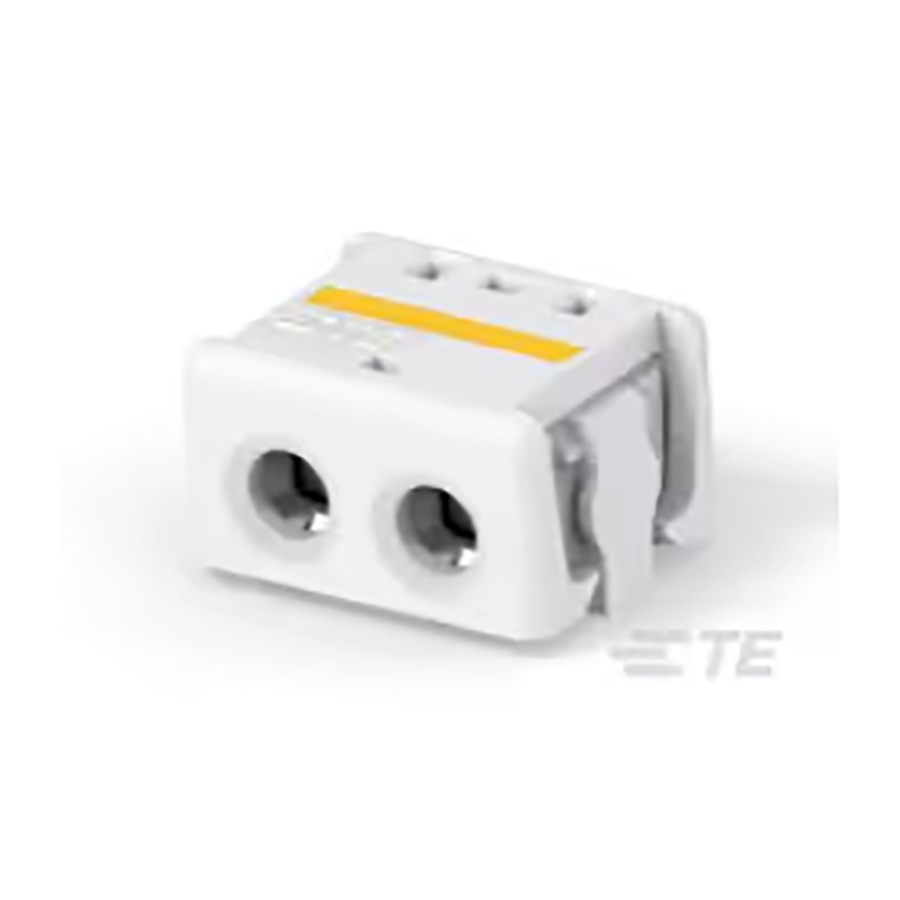

Lighting Connectors SMD/SMT Number of Positions:2 Connector, Socket 4 mm
| Parameter | Value |
|---|---|
| Length | 9.7 mm |
| Width | 7.747 mm |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 250 V |
| Height | 5.7912 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 7.75 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Tin |
| Pitch | 4 mm |
| Current Rating | 8 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Yellow |
| Gender | Receptacle |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Connector, Socket |
| Wire/Cable Gauge | 18 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 8.5 A |
| Housing Color | Natural |
| Insulation Diameter | 2.2 mm |
| Keyed | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Make First / Break Last | No |
| Sealable | No |
Stock: 5566
Distributors
pcbx
pcbxUnit Price$0.66941
Ext.Price$0.66941
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66941 | $0.66941 |
| 10 | $0.56767 | $5.67670 |
| 25 | $0.53177 | $13.29425 |
| 50 | $0.50697 | $25.34850 |
| 100 | $0.48218 | $48.21800 |
| 300 | $0.43878 | $131.63400 |
| 500 | $0.39928 | $199.64000 |
| 1000 | $0.36334 | $363.34000 |
